A2-70 Aluminium Solar Mounting Structure 88m/S Ground System

Aluminum Ground Mounting System Solar Power Station Solar Photovoltaic System

A Solar power station, also known as a solar park, solar farm, or solar power plant, is a large-scale grid-connected photovoltaic power system (PV system). It uses sunlight to get energy. As the sunlight is ample and renewable, one can use it to power up the home and business premises.

Countries all over the world have decided to have solar power station installed. People all over the world have become more conscious about saving the environment and this led them to understand the importance and usefulness of solar energy and its financial feasibility.
If you install a solar power station, you might need to spend upfront. However, it will minimize your energy consumption significantly in the later 25 years.

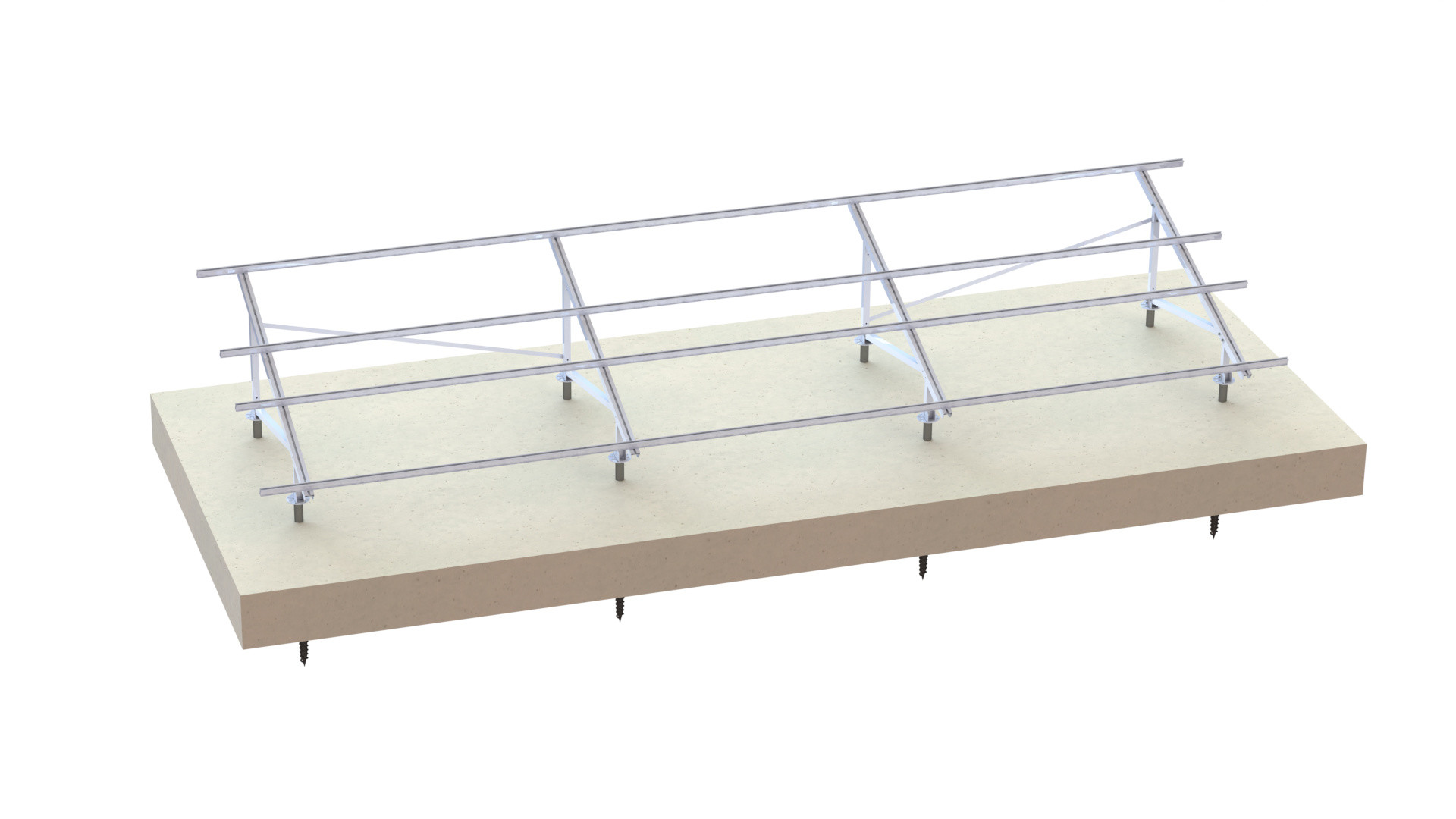

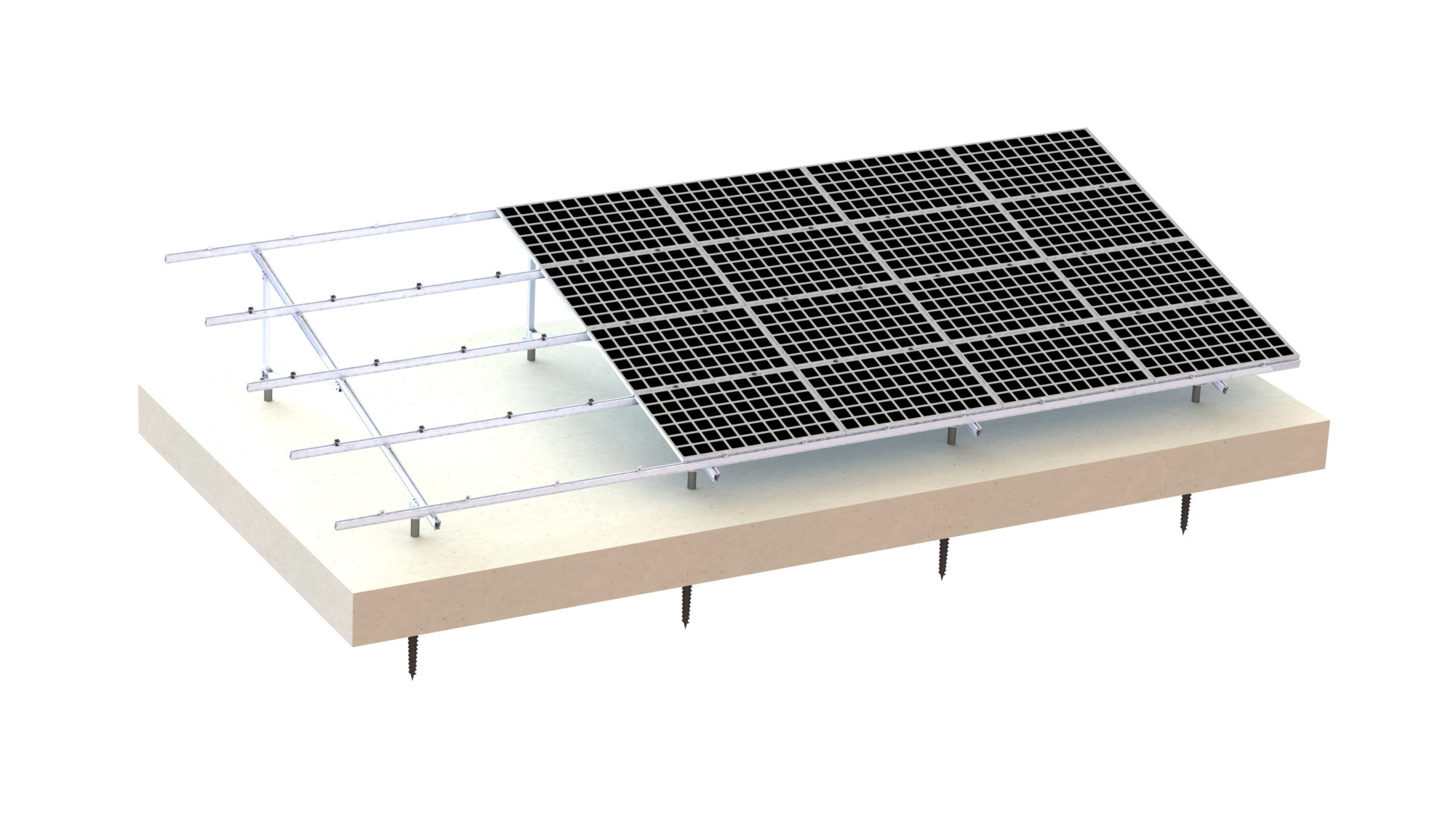

MGA series are All-Al Ground System, it means the structure is equipped with components which made of aluminum for mounting on ground.  This series include MGA4, MGAS I and MGAS II. These system consist of components that allow for pre-installed column unit and beam unit to combine with the rail 65, rail 75, rail 105 assembly for simple and no drilling, welding, or heavy machinery required.

In addition, the system works with a variety of foundation options, including concrete piers and ground screws.

Technical Data

Installation steps

1. Foundation installation	2. Column installation	3. Beam installation
4. Rail installation	5. Panel installation	6. Complete

Aluminum Ground Mount System Components

Photo	Item No	Name	Product type	Product line
	G000300F/R	Column unit	Racking	MGA
	E3801440A3	Beam unit	Racking	MGAS II
	44L3550A	Rail	Racking	MGA
	5ZL2750A	Rear tie	Racking	MGA
	A351	Clip	Racking	MGA
	A735	End clamp	Racking	ALL
	A835	Mid clamp	Racking	ALL
