AL6005 Anodized Aluminium Solar Mounting Structure 45 Degree Ground System

Aluminum Ground Mounting System Solar Power Station Solar Photovoltaic System

Triangles can only be said to be the most stable structure in polygons. The reason for stability is very simple. The length of the three sides is given, and the shape of the triangle is unique. It means the structure does not need to make additional fixation at the connection, so it will not deform. So in the mounting structure industry, technicians will use a large number of triangular designs to achieve the effect of structural stability.

MGAS II is a update version for MGAS I, by adding side support to get more triangle in the beam unit, so that the structure can resist bigger wind load and snow load. Also the column unit and beam unit are pre-installed before delivery, so it can greatly reduce the construction time and labor cost on site. This structure is popular in Japan, had been installed for a lot of ground projects from 2016, after typhoon and earthquake every year, it still operates well.

And due to the main material of the structures are high-strength aluminum, it has excellent corrosion resistance. We had sent samples to third-party testing institution, and after salt spray time, the anti-corrosion of the material has reached the highest level.


Technical Data

Installation steps

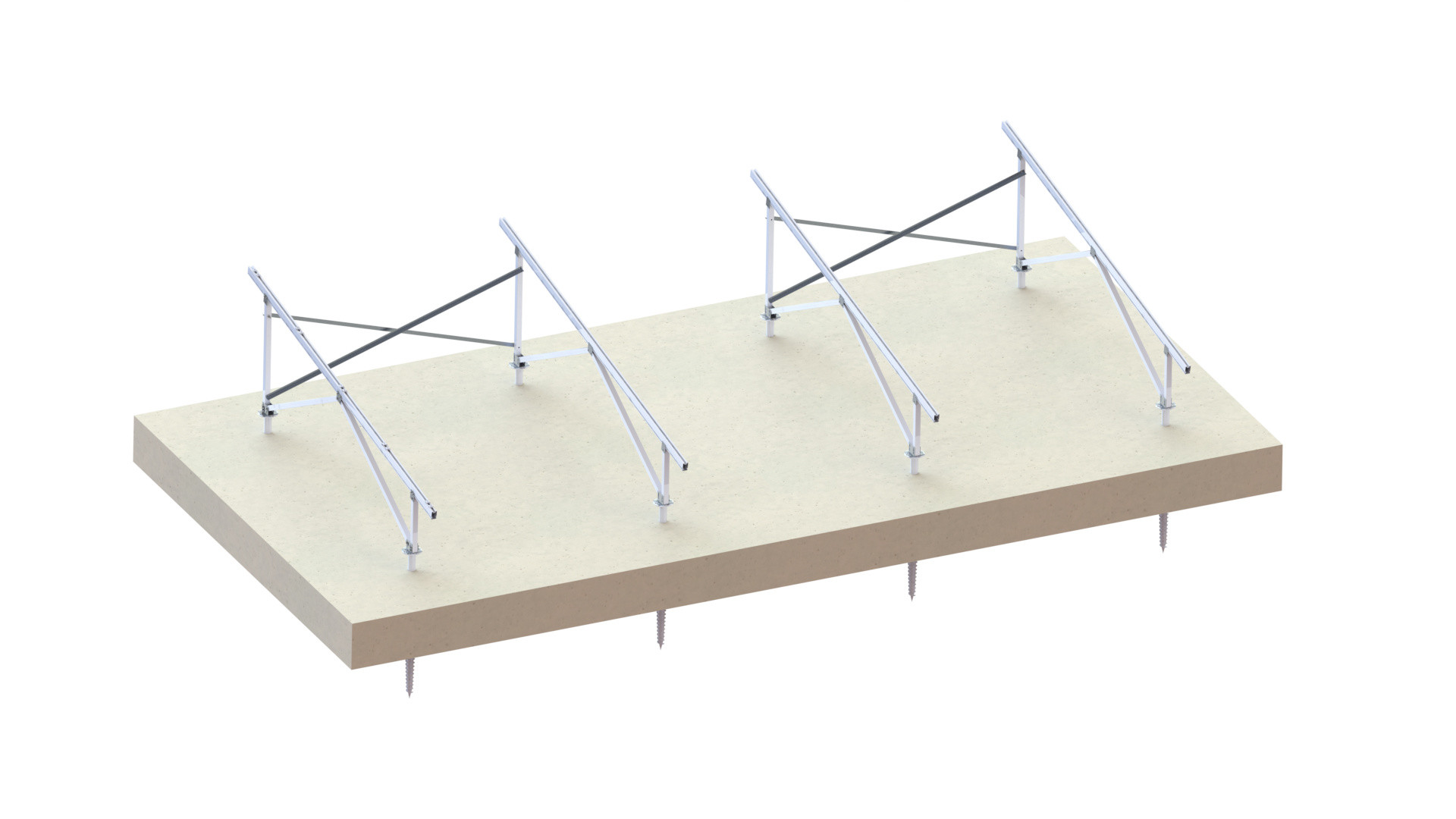

1. Pile installation	2. Column installation	3. Beam installation

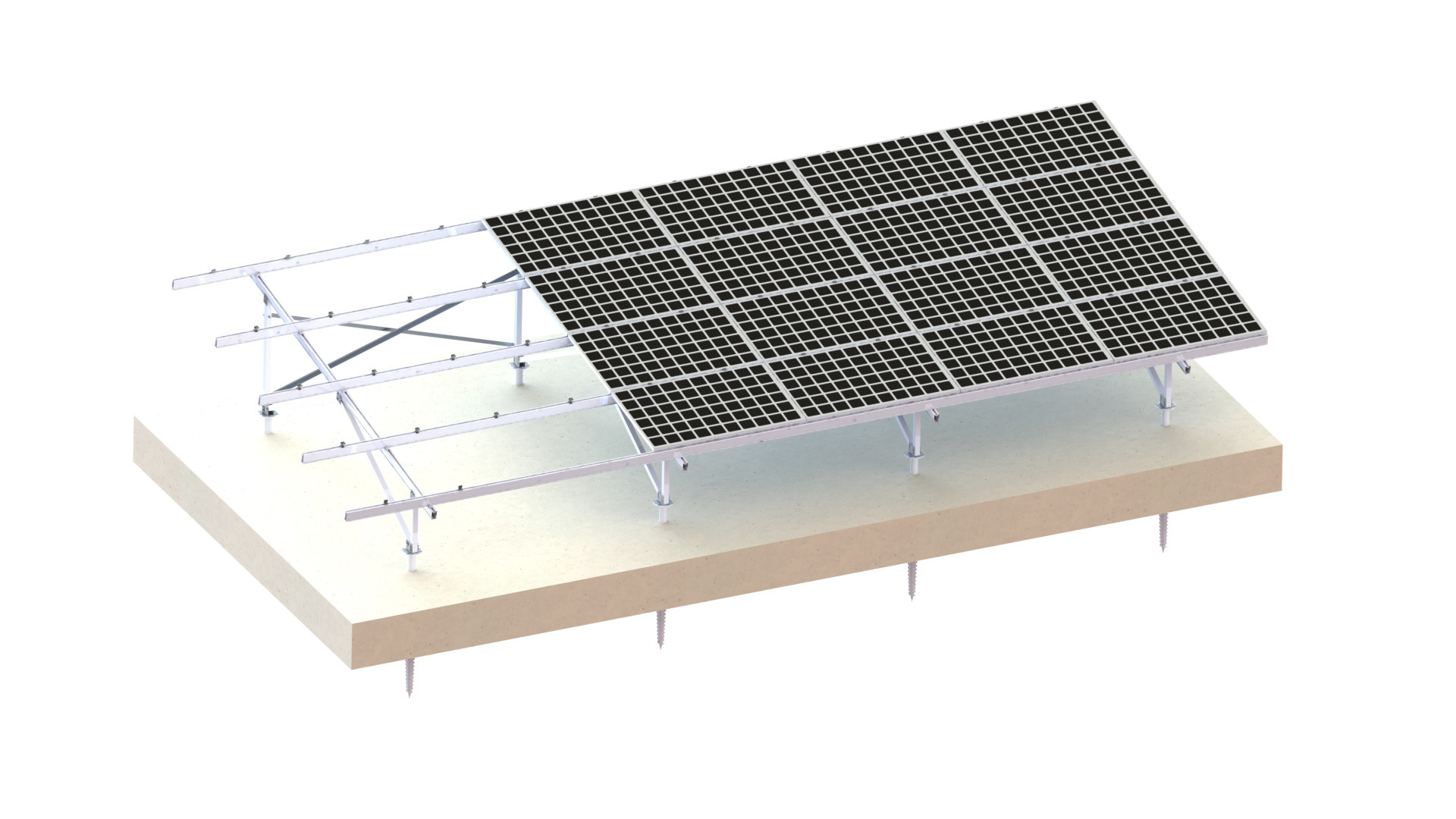

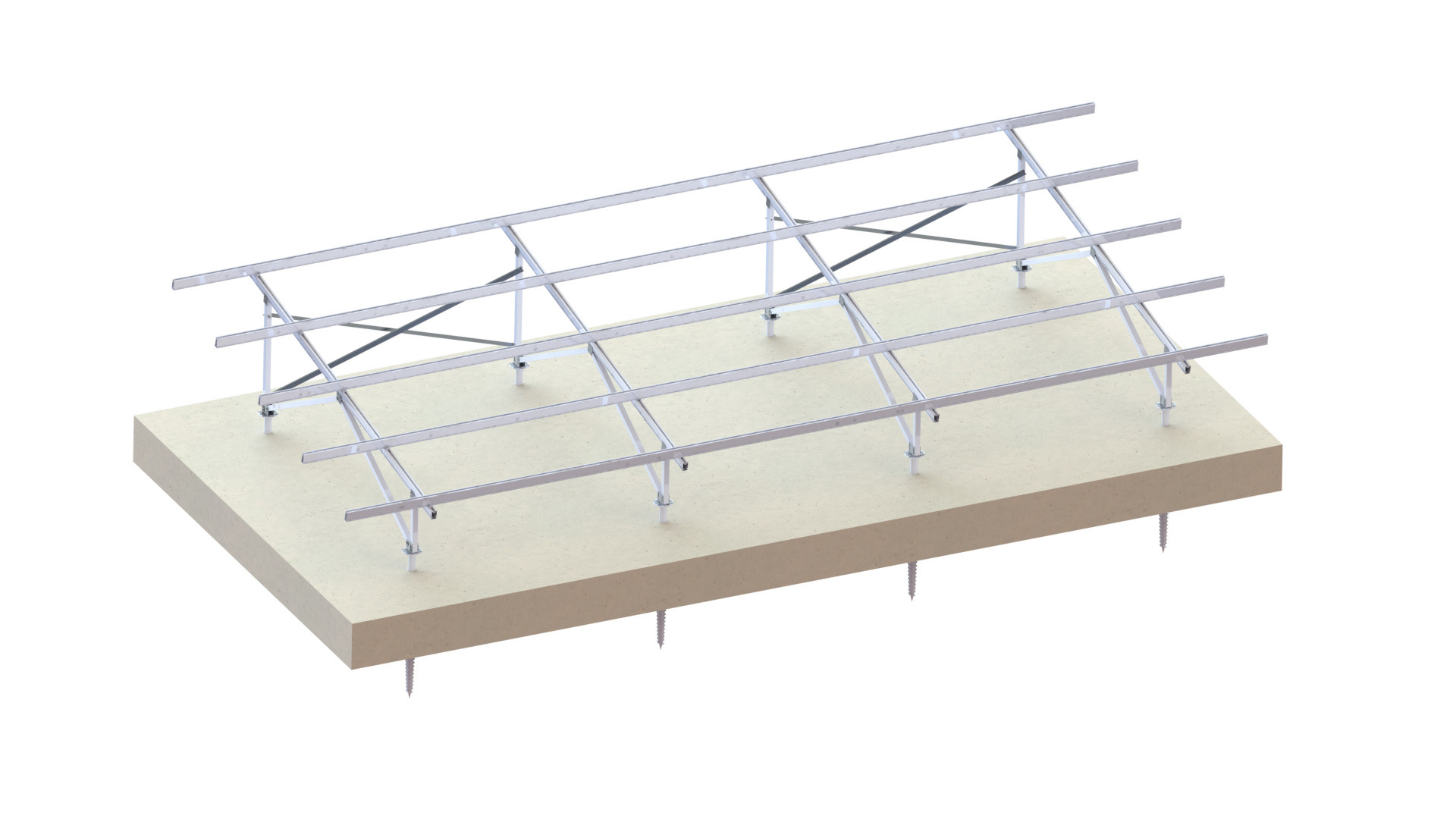

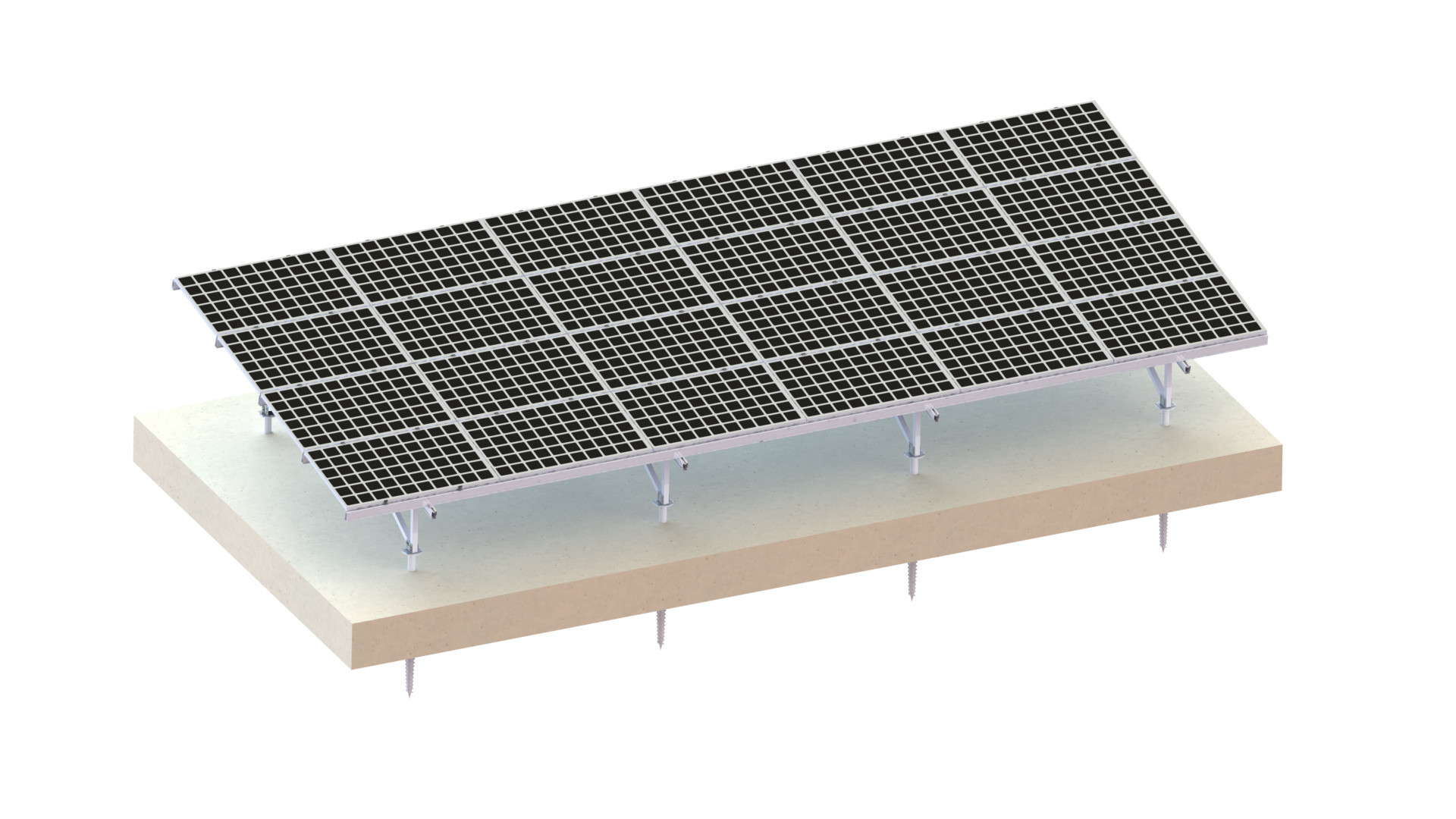

4. Rail installation	5. Panel installation	6. Complete

Aluminum Ground Mount System Components

Photo	Item No	Name	Product type	Product line
	G0000F/R	Column unit	Racking	MGA
	E0000000A3	Beam unit	Racking	MGAS
	44L0000A	Rail 65	Racking	MGA
	5ZL0000A	Rear tie	Racking	MGA
	A351	Clip	Racking	MGA
	A735	End clamp	Racking	ALL
	A835	Mid clamp	Racking	ALL

AL6005 Aluminium Solar Mounting Structure

Anodized Aluminium Solar Mounting Structure

45 degree ground solar system

AL6005 Anodized Aluminium Solar Mounting Structure 45 Degree Ground System Images
